Chain Link Fencing

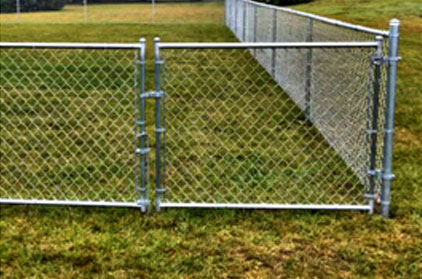

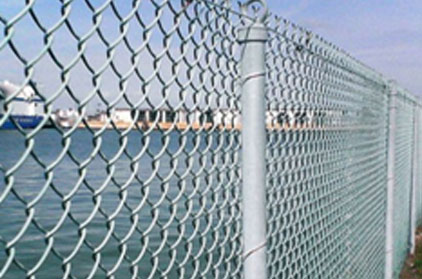

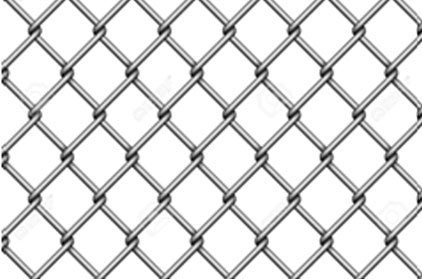

A chain-link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized wire. The wires run vertically and are bent into a zigzag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence.

Specification

  • Wire diameter ranging from 1.6mm to 5mm.
  • Mesh size 25mm to 100mm.
  • Zinc coating from 40 gsm to 366 gsm.
  • Height from 0.8m to 5m.

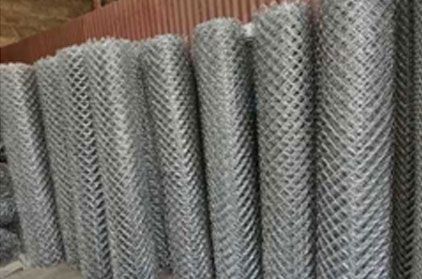

  • Compacted or un-compacted rolls.
